Final Energy

Final Energy

Overview

Calculates the final energy consumed by each building and district plant under a specific supply configuration (what-if scenario). Final energy is what the energy system actually consumes from carriers (grid electricity, natural gas, oil, coal, wood) to meet the building’s energy demand.

What It Calculates

For each building:

  • Energy carrier consumption per service (heating, cooling, DHW, electricity)
  • Conversion losses based on technology efficiency
  • Booster energy for district-connected buildings

For each district plant (DH/DC):

  • Primary and tertiary conversion energy
  • Network pumping electricity

Prerequisites

  • Energy Demand Part 2 completed
  • Solar Radiation completed (if PV/PVT/SC are configured)
  • Thermal Network Part 1 + Part 2 completed (if district network scenarios are used)
  • Building supply settings configured (Building Properties > Supply tab)

Key Parameters

ParameterDescription
What-if nameName for this supply configuration scenario
Network nameWhich thermal network layout to use (if applicable)
Supply type (heating/cooling/DHW)Assembly codes for building and/or district scale
Overwrite supply settingsTrue to use what-if mode instead of production mode
Connected buildingsOverride which buildings connect to the network

How to Use

  1. Configure supply systems in Building Properties > Supply tab:

    • Set scale (BUILDING or DISTRICT) per service per building
    • Assign conversion technologies and carriers

  2. Run Final Energy:

    • Navigate to Life Cycle Analysis
    • Select Final Energy
    • Enter a what-if scenario name
    • Select network layout (if buildings use district services)
    • Click Run

  3. Processing time: 1-5 minutes for typical districts

Output Files

All outputs are stored under {scenario}/outputs/data/analysis/{what-if-name}/final-energy/:

FileDescription
configuration.jsonFull supply configuration (buildings + plants). Used by all downstream features.
final_energy_buildings.csvAnnual summary per entity (buildings + plants)
{building_name}.csv8,760-row hourly energy by carrier per building
{plant_name}.csv8,760-row hourly energy by carrier per plant

Understanding Results

  • Building-scale systems: Final energy = demand / efficiency
  • District-connected buildings: Show DH/DC as their carrier; actual fuel consumption is at the plant level
  • Plants: Appear as separate rows with type=plant; their carrier consumption covers all connected buildings plus network losses and pumping
  • configuration.json: Stores the complete supply configuration and is the sole source of truth for emissions, costs, and heat rejection

Solar-thermal DHW dispatch (SC primary)

When a hot-water assembly uses a flat-plate (SC1) or evacuated-tube (SC2) solar collector as the primary component, the Final Energy feature runs an hourly tank-dispatch model instead of the usual “fuel = demand / efficiency” shortcut.

What the model does

  1. Reads Q_SC_gen_kWh from the SC potential file, summing only the (surface, panel_type) pairs configured for this building (not the full panel-type aggregate — see Solar Collectors output files).
  2. Charges a single-node fully-mixed tank, sized at 50 L per m² of SC aperture and initialised at the hour-0 cold-mains inlet temperature.
  3. Serves DHW demand from the tank through a thermostatic mixing valve (setpoint 60 °C, the standard CEA TWW_SETPOINT). When the tank is below setpoint, the secondary component (BO/HP) tops up the gap.
  4. Applies a Newton-style standing loss toward 20 °C ambient at 2%/hr.
  5. Dumps surplus heat that would push the tank above 105 °C (pressure-relief cap).

Assembly requirements

  • primary_component must be an SC code (SC1 or SC2).
  • secondary_component is required — solar alone cannot cover 24/7 DHW. Must be a boiler (BO*) or heat pump (HP*). The validator rejects assemblies without a backup.
  • PVT cannot be a DHW primary. Its ~35 °C operating temperature is below the DHW setpoint and would need a stratified tank model to credit meaningfully. Configure an SC primary instead; PVT continues to offset space-heating emissions via the legacy path.

Output columns (per-building B####.csv)

ColumnMeaning
Qww_sys_SOLAR_kWhHourly solar-delivered share of DHW (zero-emission carrier)
Qww_sys_{backup}_kWhHourly backup-carrier share (e.g. Qww_sys_GRID_kWh for an electric BO5 backup). Equals served_by_backup_kwh / backup_efficiency.
Qww_sys_SOLAR_dumped_kWhDiagnostic: hourly heat discarded at the T_MAX=105 °C cap. Non-zero values flag an oversized SC for the DHW load.
E_sys_GRID_kWhIncludes SC pump parasitic (2% of delivered solar, added to the grid-electricity stream)

The carrier-aggregation pipelines (summary CSV, emissions, costs, visualisation) filter out *_dumped_kWh so it doesn’t inflate totals.

Known caveats

  • Oversizing is not a bug; it’s visible. If area_SC_m2 is much larger than DHW demand justifies, the tank becomes large enough that standing losses dominate delivered heat. Check Qww_sys_SOLAR_dumped_kWh and the gap Q_SC_gen − Qww_sys_SOLAR_kWh − Qww_sys_SOLAR_dumped_kWh (standing loss) to diagnose.
  • Self-consistent T_cold bias: The cold-mains inlet series used by both the demand side (Qww_sys_kWh) and the dispatch side comes from cea.demand.hotwater_loads.calc_water_temperature, which has a pre-existing units bug (uses hours where the Kusuda 1965 model expects seconds) that collapses the series to a constant. Real-world solar fractions in temperate climates are likely ~10% higher than the model reports. Tracked separately from this feature.

Troubleshooting

IssueSolution
”Multiple district heating assembly types detected”All district buildings must use the same assembly. Provide only one district assembly per service.
”District substation file not found”Run thermal-network Part 2 before final-energy for scenarios with district connections.
”Component not found”Check that ASSEMBLIES references valid COMPONENTS codes in the database.

Plot - Final Energy

Overview

Creates bar charts of final energy consumption by carrier for buildings and plants.

What It Shows

  • Stacked bars per building showing carrier breakdown (Grid, Natural Gas, Oil, Coal, Wood)
  • Plant entities shown with -DH or -DC suffix
  • Multiple what-if scenarios can be compared side by side

Key Parameters

ParameterDescriptionOptions
What-if nameWhich scenario(s) to plotMulti-select from available
Y metricWhich carrier(s) to showGrid electricity, Natural gas, Oil, Coal, Wood
Y unitEnergy unitMWh, kWh, Wh
Normalise byNormalisationNone, Gross floor area, Conditioned floor area
X axisView typeBy building, by month, by season, district hourly, etc.
IncludeEntity filterBuildings, Plants, or both

Examples

Two what-if scenarios (Config 1 and Config 2) showing different supply configurations for the same district:

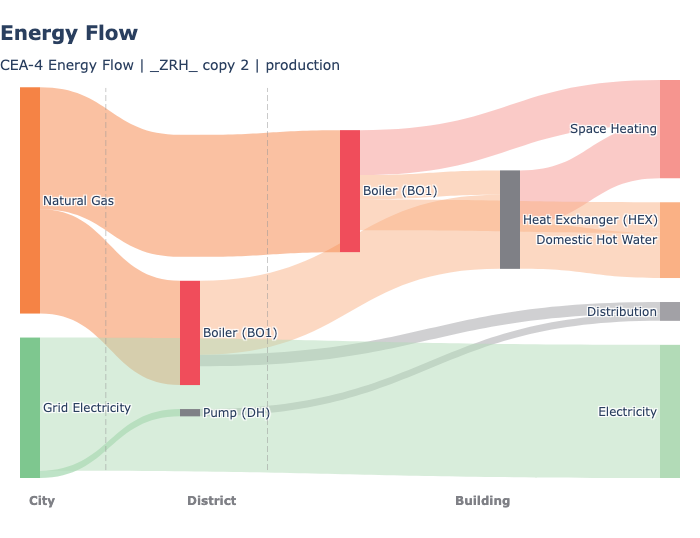

Energy Flow Sankey - Config 1

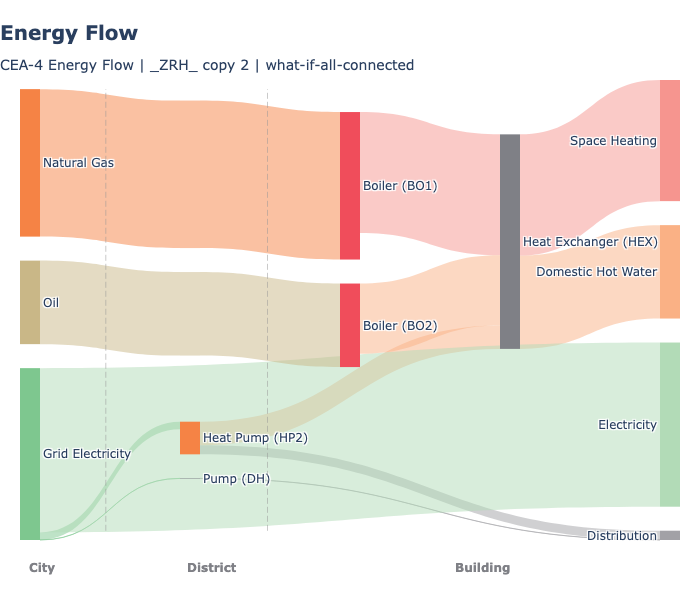

Energy Flow Sankey - Config 2

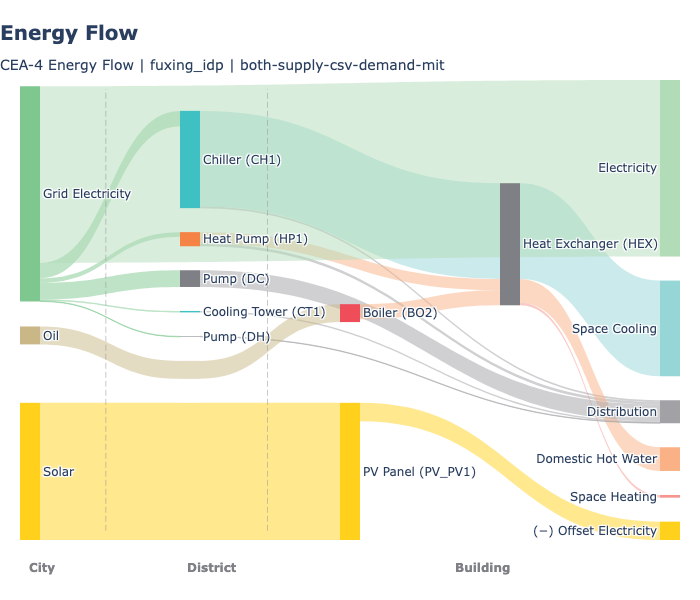

A more complex scenario with district heating, district cooling, and solar:

Energy Flow Sankey - DH, DC, and Solar

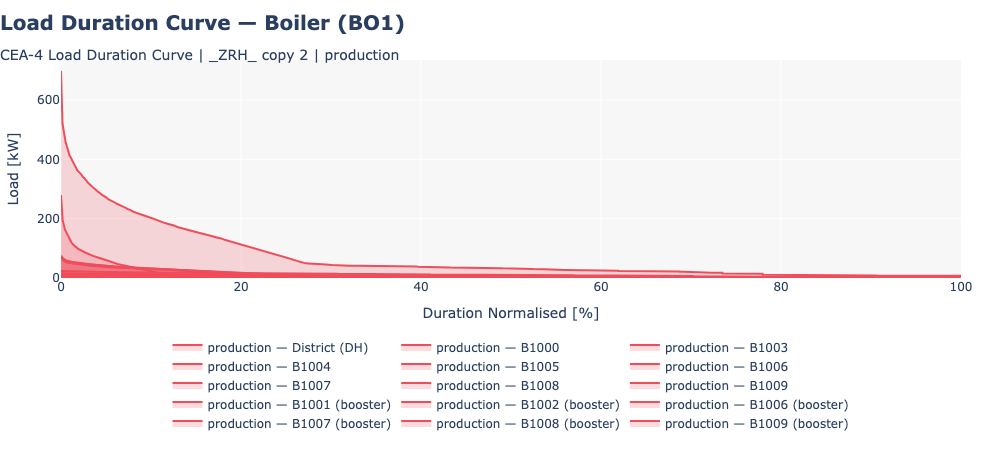

Load duration curve showing the same component (BO1) across district plant, standalone buildings, and boosters:

Load Duration Curve - Boiler (BO1)

Chart Interpretation

  • Energy flow sankey shows carrier flows from city-level sources through district and building equipment to end-use services
  • Load duration curve shows the hourly load profile of a component sorted by magnitude, useful for equipment sizing and utilisation analysis
  • Emissions - Uses final energy to calculate operational emissions
  • System Costs - Uses final energy to calculate operational costs
  • Heat Rejection - Uses final energy to calculate waste heat
